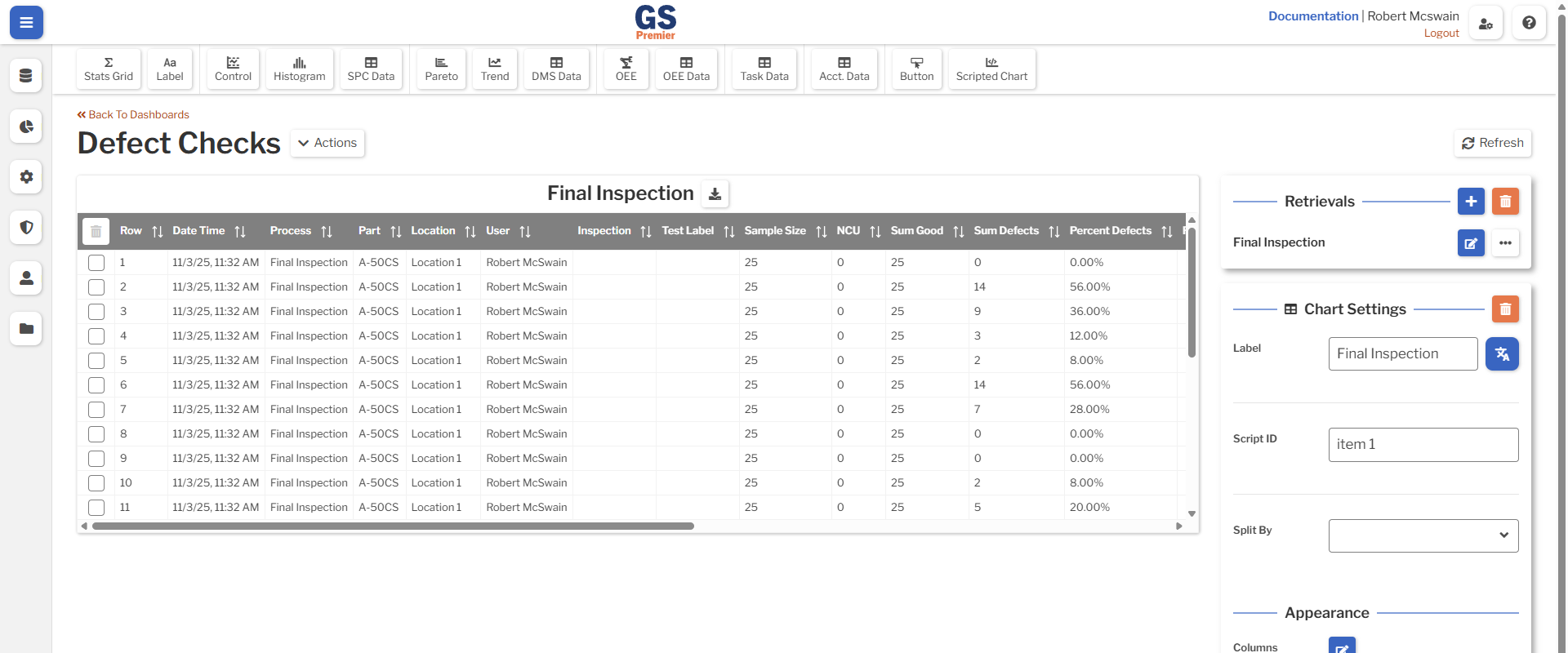

DMS Data Table
DMS Data Tables are used to view, edit, and delete Defect Data.
Settings
| Setting | Description |
|---|---|
| Label | The title to display on the table. |
| Script ID | Identifies how this table is referenced in Dashboard Scripts. |
| Split By | Controls how the data is split into multiple tables. One table will be drawn for each unique grouping. |
| Columns | Controls which columns are displayed on the table. See columns for more information. |

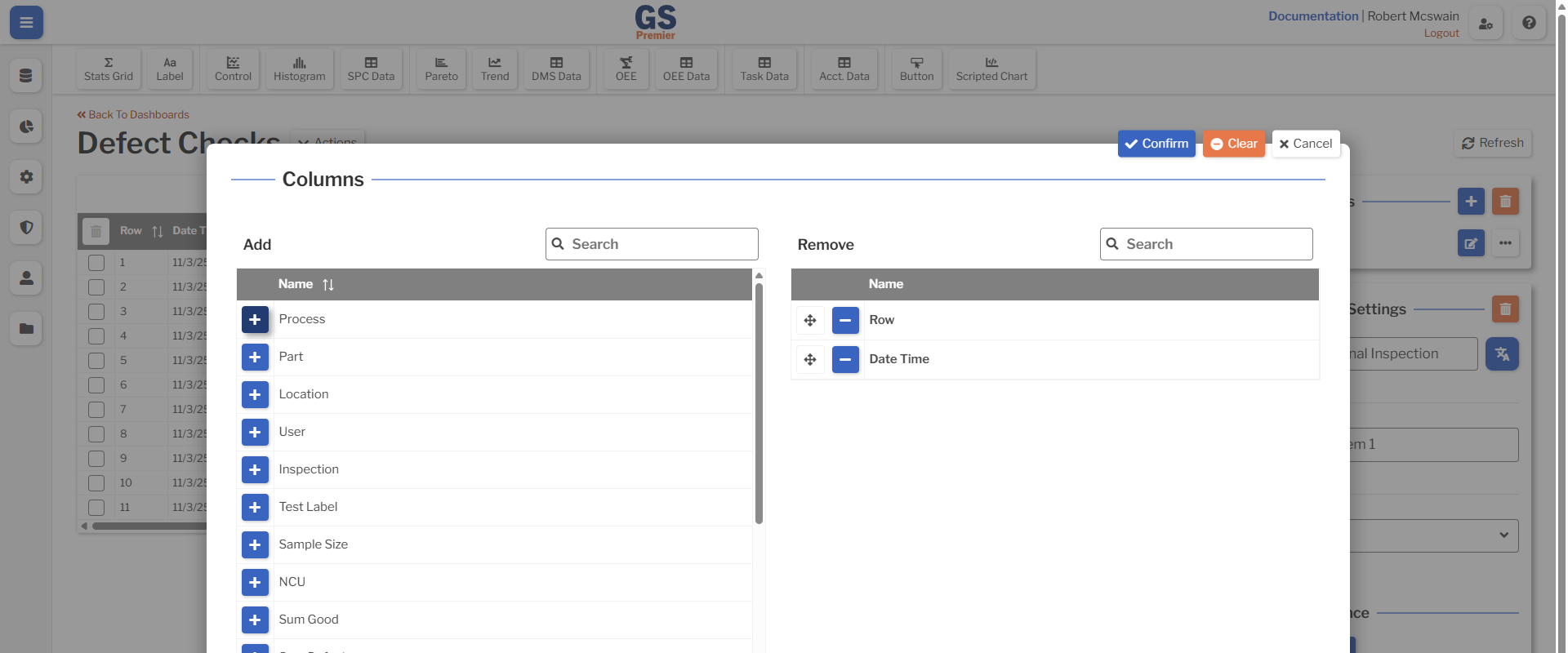

Columns
The columns which are displayed in the Data Table may be modified using the Columns property window setting. By default, all columns are shown.
To display only a subset of the columns, the + button may be pressed. Columns which have been selected to be displayed will be displayed in the Remove table. If the Remove table is empty, all columns will be displayed.

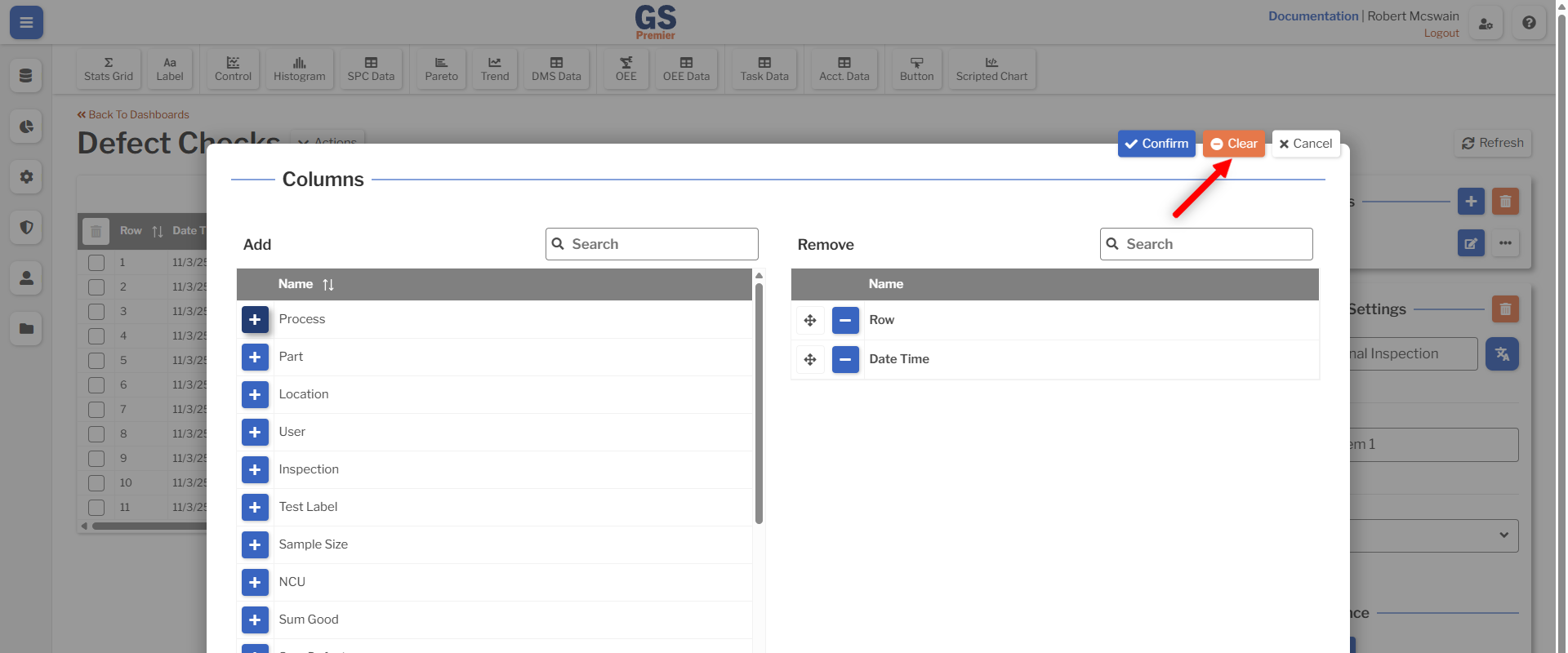

The table may be reset to the default by removing all columns or by pressing the Clear button.

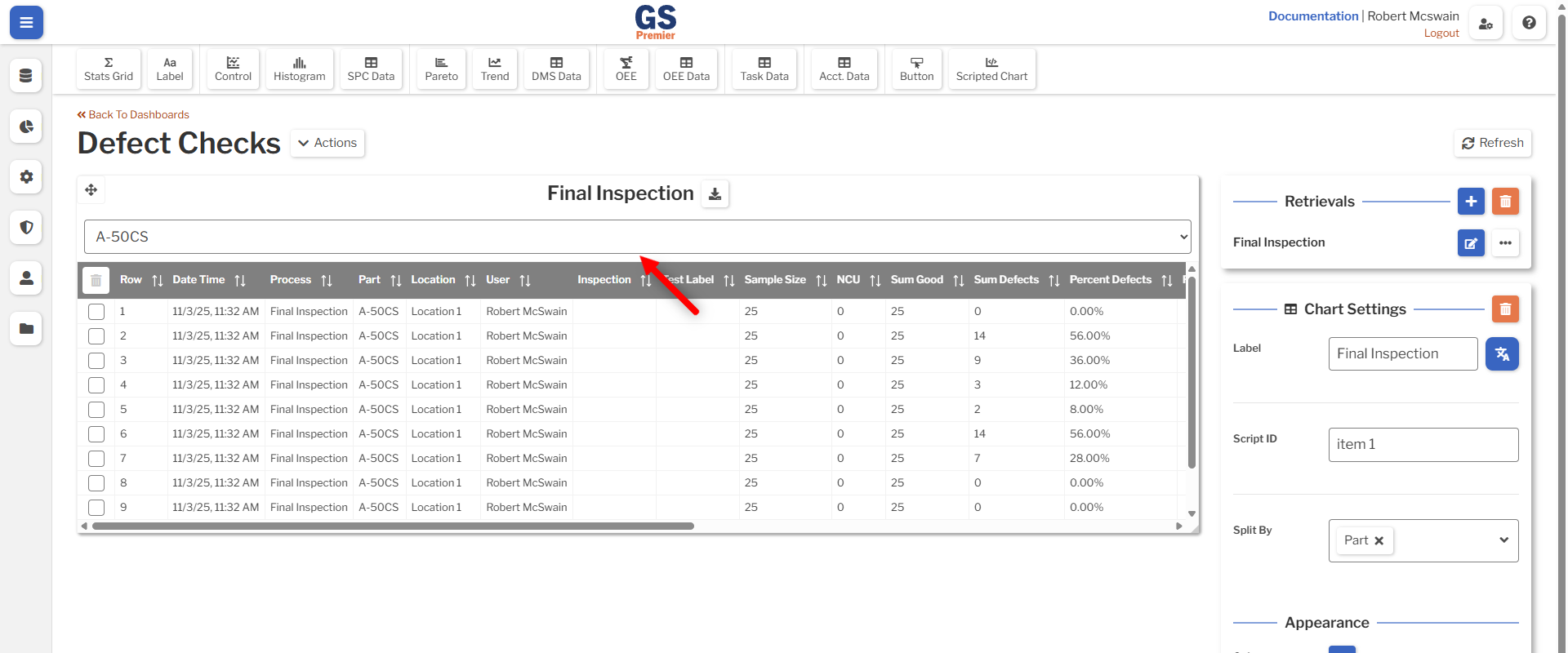

Split By
When the DMS Data Table is Split into multiple charts, only one will be displayed at a time. The displayed chart may be changed using the Standard dropdown.

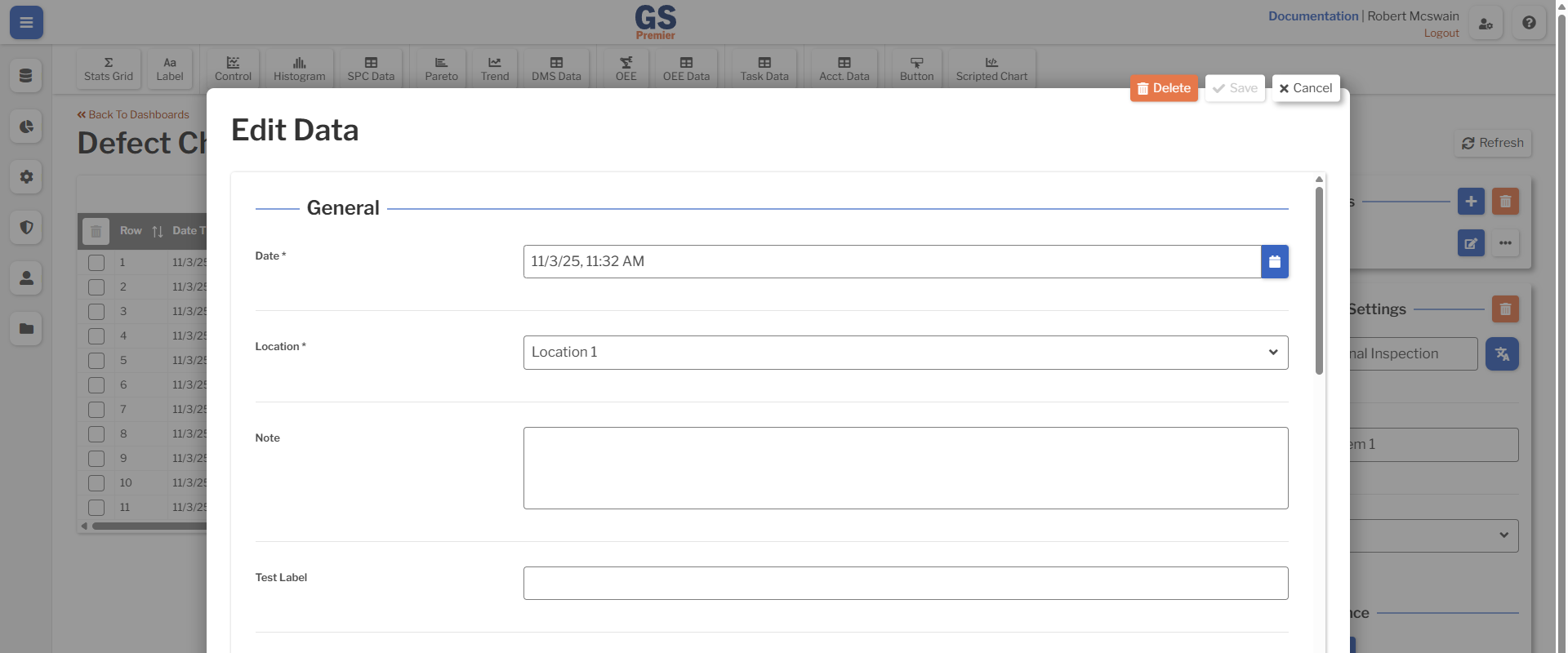

Edit Data
Any row in an DMS Data Table may be clicked to bring up more information about the data record. If the current User has the Edit Data permission, they will be provided with an overlay where they are able to edit the data.

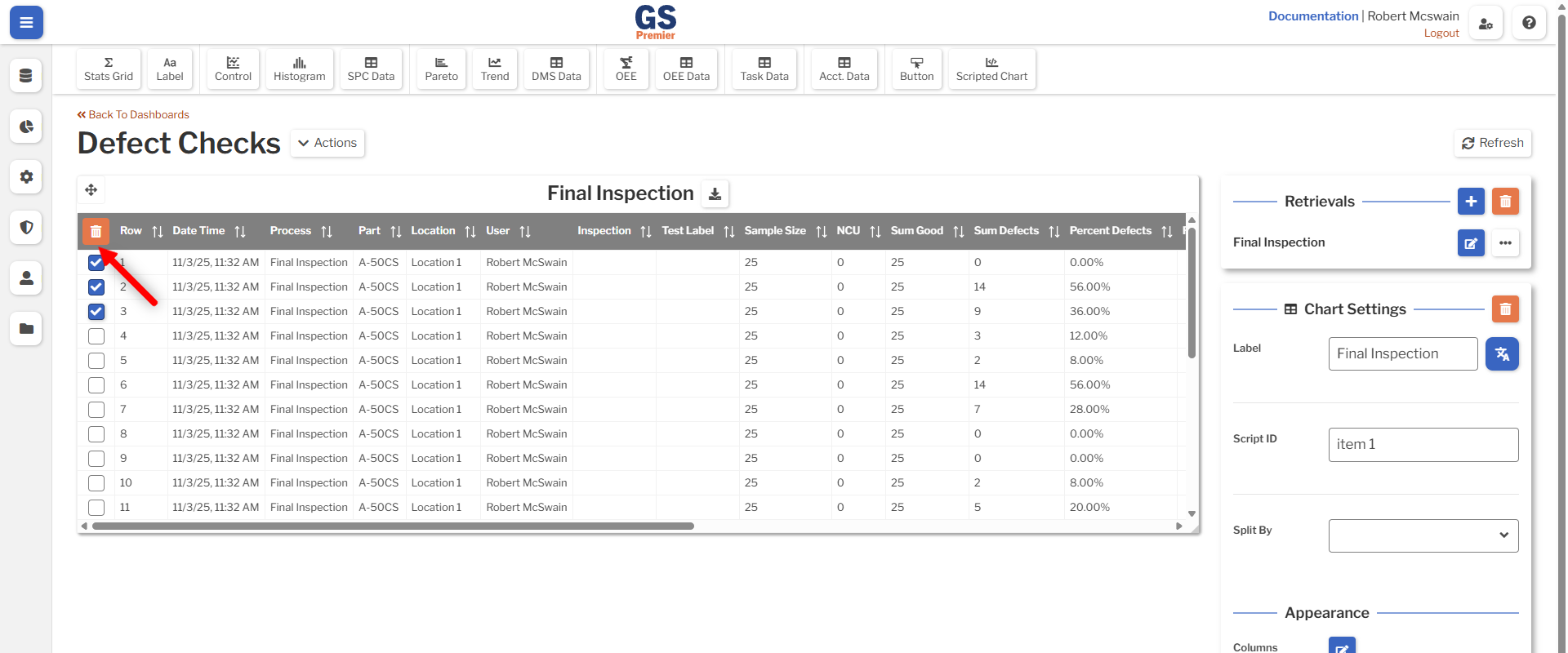

Delete Data
If the current User has the Delete Data permission, they will be able to check any number of rows. When at least one row is checked, the Delete Data button will be enabled. Clicking this button will delete the selected rows.
Customization
The DMS Data Table may have its properties updated through scripting, but may not be customized through scripting in any other way.
Download
Tables may be saved as a CSV for offline use by clicking the Download button. If multiple tables have been drawn, they may be downloaded individually by changing the view to the desired table.
