Sub-Inspections
Sub-Inspections are used to create groups of data entry Tests that are submitted at the same time during an Inspection.

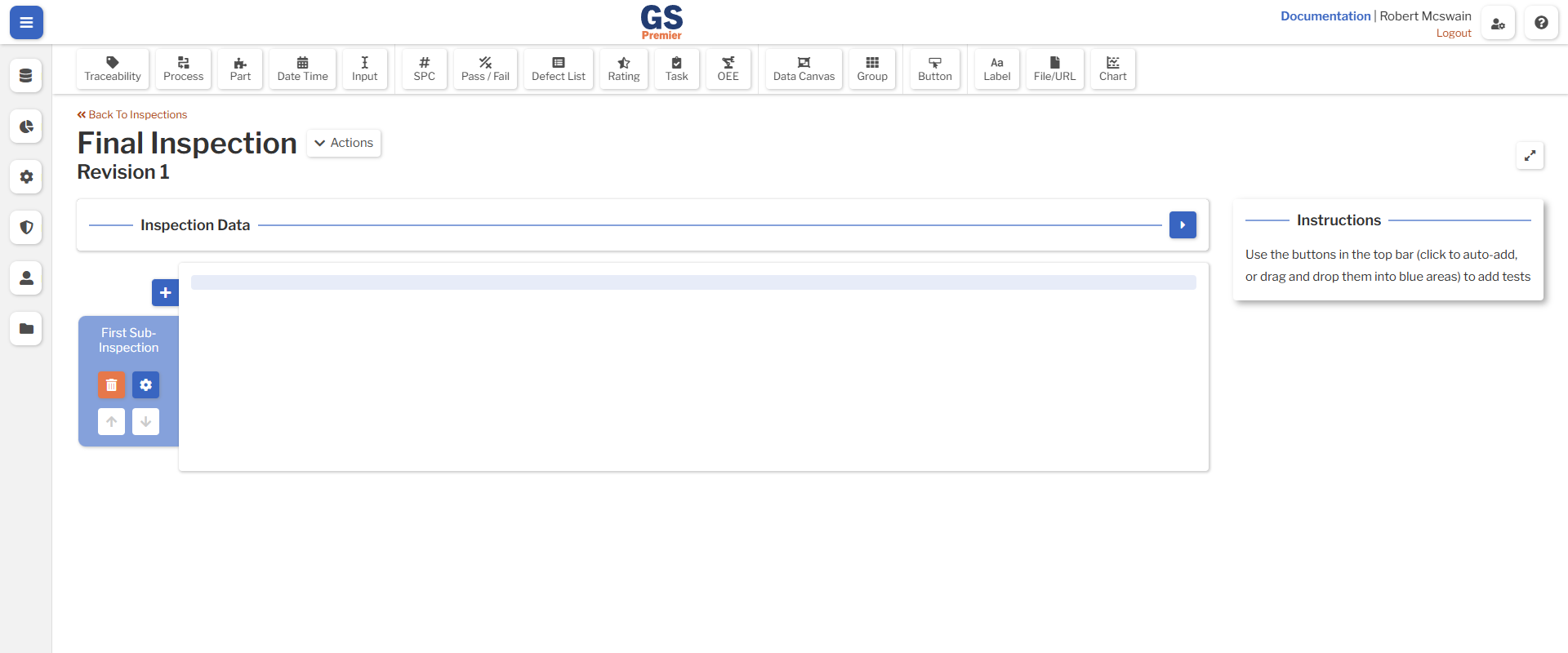

Each Inspection contains one or more Sub-Inspections, and each Sub-Inspection contains one or more Tests.
Settings

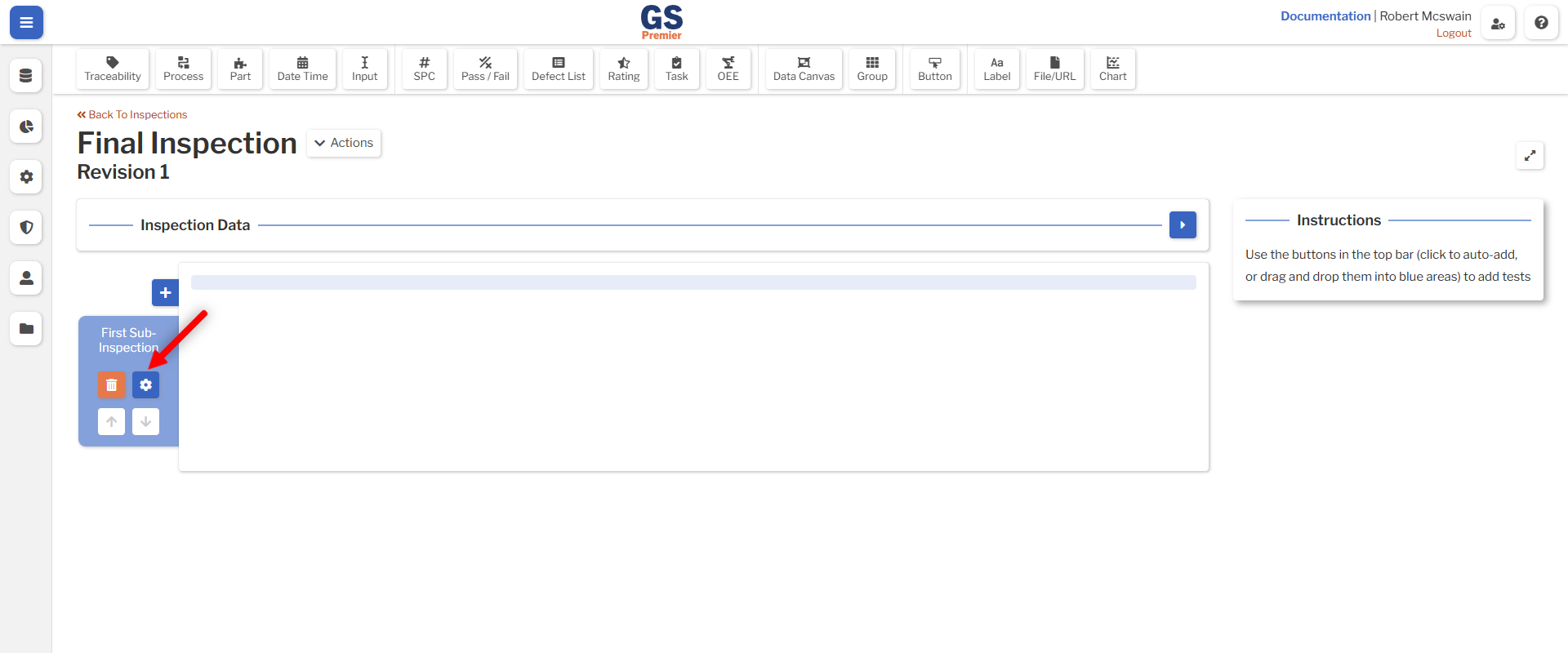

Sub-Inspection settings can be edited by selecting the Settings button of the Sub-Inspection.
| Field | Description |
|---|---|
| Name | Display name of the Sub-Inspection. |
| SPC Tab Behavior | When set to Default, pressing the Tab key or finishing input from a Serial Device will move to the next field in the current SPC Test. This is used to measure the first Characteristic on all Parts, then the second Characteristic on all Parts, etc. When set to Tab to Next SPC Test, pressing the Tab key or finishing input from a Serial Device will move to the field with the same subgroup position in the next SPC Test. This is used to measure all Characteristics on the first Part, then all Characteristics on the second Part, etc. This setting only has an effect on Sub-Inspections with multiple consecutive SPC Tests. |
| Note Button | Whether the button allowing the operator to enter notes is displayed and whether a note is required to be entered. |
| Show Submit Button | Whether the Submit button is displayed to the user. It can be useful to hide the Submit button if the Sub-Inspection will be submitted via an Inspection Script. |
| Submit Button Label | Display name of the Submit button. |
| Show Cancel Button | Whether the Cancel button is displayed to the user. |
| Cancel Button Label | Display name of the Cancel button. |
| Visible in List | Whether this Sub-Inspection is visible when viewing the list of Sub-Inspections for this Inspection. It can be useful to hide a Sub-Inspection if navigation is done via an Inspection Script or the Next Sub-Inspection property. |
| Next Sub-Inspection | The Sub-Inspection that the user will be navigated to after completing this Sub-Inspection. Unsetting this value will display the list of Sub-Inspections to the user after submitting this Sub-Inspection. Setting this value to the same Sub-Inspection will repeat the Sub-Inspection. |
| Script ID | Identifies how this Test is referenced in Inspection Scripts. |
