Alerts

Alerts define who is notified and what information is included in the messages sent in response to real-time failures in Inspections.

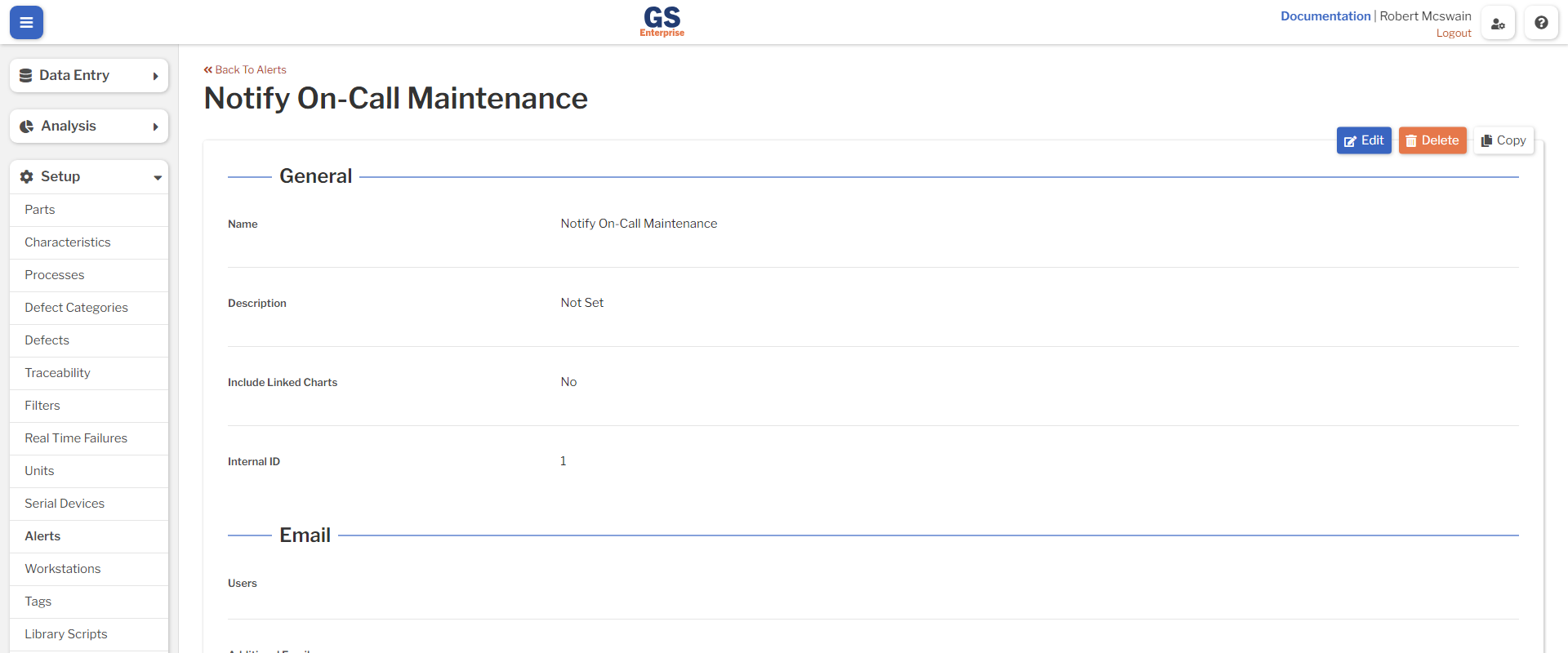

Alert

Settings

Field Description
Name Unique name of the Alert.
Description Notes about the Alert. This is only displayed on the Alert's page.
Include Linked Charts If a Chart Test is linked to the Test that failed, an image of the chart will be attached to emails.
Email Users Users that will receive an email when this Alert is triggered.
Additional Emails Other email addresses that will receive an email when this Alert is triggered.
Email Template Body of the email. Template expressions can be used to include context.

Microsoft Outlook will sometimes incorrectly render lines of text of over 1,000 characters. Try breaking long text onto multiple lines if this behavior is experienced.
Text Message Users Users that will receive an SMS text message when this Alert is triggered.
Additional Phone Numbers Other phone numbers that will receive an SMS text message when this Alert is triggered.
Text Message Template Text message content. Template expressions can be used to include context.

Templates

Expressions are used in templates to replace values from the Test that caused the real-time failure. Information about the Test, Sub-Inspection, Process, Part, and more can be included in the template.

Expressions are included in templates by using double curly braces:

Inspection name: {{ inspection }}

When the Alert is sent, the value of the expression is replaced into the message:

Inspection name: Stamping - Hourly Checks

Default Values

Default values may be provided using the pipe character followed by the default value within double quotes

{{ char.name | "No characteristic set" }}

When the Alert is sent, if no value is set for the expression, the default value will be used. Default value strings may not contain other expressions.

Expressions

Expressions are case-sensitive, cannot be nested within each other, and must not be partially formatted. Any whitespace inside the curly braces is ignored.

inspection

The name of the Inspection.

subinspection

The name of the Sub-Inspection.

test

The Test that triggered this Alert.

The following properties can be accessed via the test keyword:

  • test.label

char

The Characteristic recorded by the Test. If the triggering Test is not an SPC Test, this value will be blank.

The following properties can be accessed via the char keyword:

  • char.name
  • char.description
  • char.subgroupSize
  • char.lowerSpec
  • char.upperSpec
  • char.xTarget
  • char.lowerReasonableLimit
  • char.upperReasonableLimit
  • char.lowerFixedControl
  • char.upperFixedControl
  • char.lowerIndLimit
  • char.upperIndLimit
  • char.mav
  • char.processTarget
  • char.rTarget
  • char.lowerRFixedControl
  • char.upperRFixedControl

process

The Process recorded by the Test.

The following properties can be accessed via the process keyword:

  • process.name
  • process.ncuCost
  • process.sampleSize
  • process.acceptableDefectPercentage
  • process.goalYield
  • process.acceptableYield
  • process.acceptableAvailability
  • process.acceptablePerformance
  • process.acceptableQuality
  • process.acceptableOEE
  • process.goalAvailability
  • process.goalPerformance
  • process.goalQuality
  • process.goalOEE

part

The Part recorded by the Test.

The following properties can be accessed via the part keyword:

  • part.name

failures

A comma-delimited list of real-time failures recorded by the Test.

note

The note recorded by the Test.

values

The values recorded by the Test. The format of this output is dependent on the data type of the Test.

For example, the template

The values were {{ values }}.

will have its output displayed as

  • (SPC) The values were 1.8, 2.7, 3.6.
  • (DMS) The values were Sample Size: 1, total Defects: 10, total NCU: 4.
  • (OEE) The values were Scheduled Time: 720, Available Time: 706.

trace

The Traceability recorded by the Test. Traceability must be accessed with the trace keyword, followed by the Internal ID of the Traceability.

The following properties can be accessed via the trace keyword:

  • trace.n.name The name of the Traceability.
  • trace.n.value The value of the Traceability recorded by the Test.

For example, if the Internal ID of the Machine Traceability is 3, the Machine submitted with the data can be accessed as

The machine was {{ trace.3.value }}

Examples

Inspection and Test Labels

Template

The check "{{ test.label }}" failed while performing {{ inspection }}.

Output

The check "Tool Wear" failed while performing Stamping - Hourly Checks.

Characteristic Values

Template

Triggered alert for {{ char.name }}, which has an upper spec of {{ char.upperSpec | "N/A" }}.

Output

Triggered alert for Bolt Length, which has an upper spec of N/A.

Failures, Values, and Traceability

Template

Values: {{ values }}
Failures: {{ failures }}
{{ trace.12.name }}: {{ trace.12.value | "Not set" }}
{{ trace.4.name }}: {{ trace.4.value | "Not set" }}

Output

Values: 1.8, 2.7, 3.6
Failures: X Above Spec, X Above Control
Department: Molding
Tool ID: Not set

Import/Export

Alerts can be imported and exported using the following CSV structure.

Column Header Create Update Allows Multiple Description
ID Not Allowed Required No Alert's Internal ID
Name Required Optional No String
Hidden Optional Optional No True | False
Description Optional Optional No String
Add Email User Optional Optional Yes A GS User's username
Remove Email User Not Allowed Optional Yes A GS User's username
Add Additional Email Optional Optional Yes An email address to add
Remove Additional Email Not Allowed Optional Yes An email address to remove
Email Template Optional Optional No String
Add Phone User Optional Optional Yes A GS User's username
Remove Phone User Not Allowed Optional Yes A GS User's username
Add Additional Phone Optional Optional Yes A phone number to add
Remove Additional Phone Not Allowed Optional Yes A phone number to remove
Text Message Template Optional Optional No String
