Getting Started with Inspections

Inspections are the main method of data collection in GS. Follow this guide to create a simple Inspection to collect SPC and DMS data.

This guide assumes you have already set up Parts, Characteristics, and Defects.

Best Practices

To get the most out of Inspections in GS, follow these best practices.

  • Make sure that Inspections have a Published Revision. In order for Users with the List and Run Published Revision permission to run an Inspection, it must be published. Otherwise, the Inspection will not appear in their Inspection list page.
  • All data must have an associated Process. Either set the Process in the Inspection settings or add a Process Test to set the Process.
  • Use Developer Mode to submit temporary data. When testing an Inspection, switch your Script Mode setting to Development to submit dev data. Dev data is automatically cleaned up after a few days, based on the Global Setting

When setting up Sub-Inspections, ask yourself the following questions.

  • Are there obvious logical groups of Tests? If different users are performing visual, dimensional, and chemical checks, create three different Sub-Inspections: Visual Checks, Dimensional Checks, and Chemical Checks.
  • Are there tasks that must be performed in a particular order? If a single Inspection is for an entire assembly process and the quality checks for each step are done at different times, create a different Sub-Inspection for each step.
  • Are users expected to use multiple Serial Devices to simultaneously measure multiple Characteristics of a Part? If so, all the SPC Tests for these Characteristics should be added to the same Sub-Inspection. This makes it easy for the user to switch between devices without leaving the screen.

Create an Inspection

To create an Inspection, navigate to the Inspection list page under the Data Entry menu. Click Add.

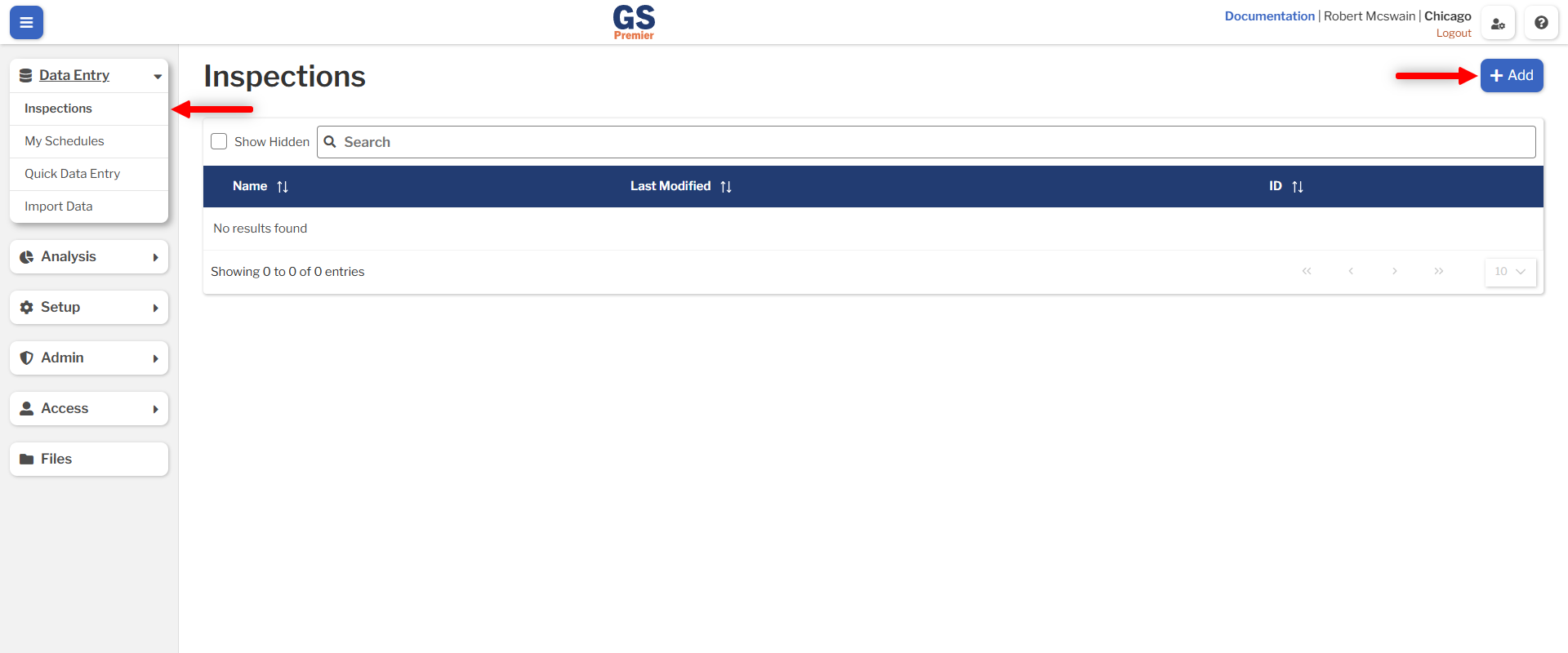

Inspection List

  1. Fill in the Name of the Inspection.

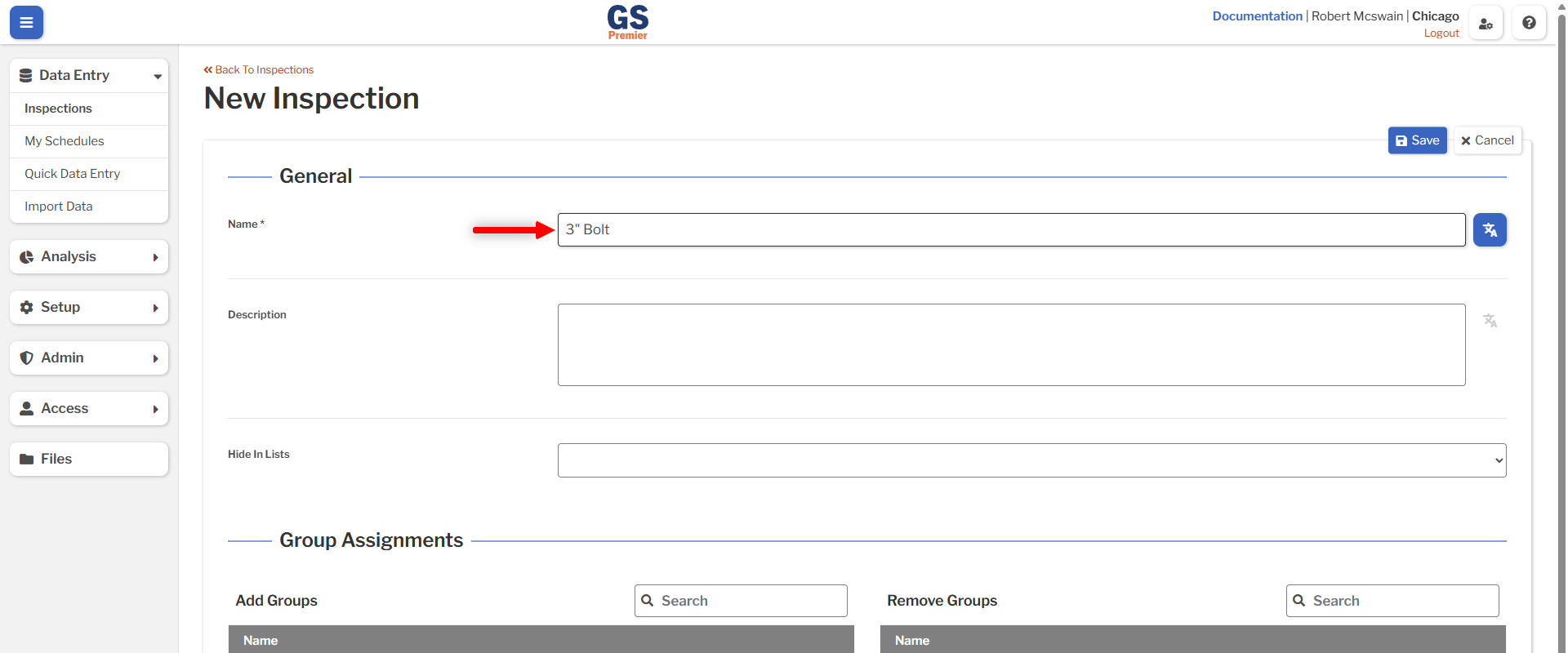

  2. Click Save. Inspection Create

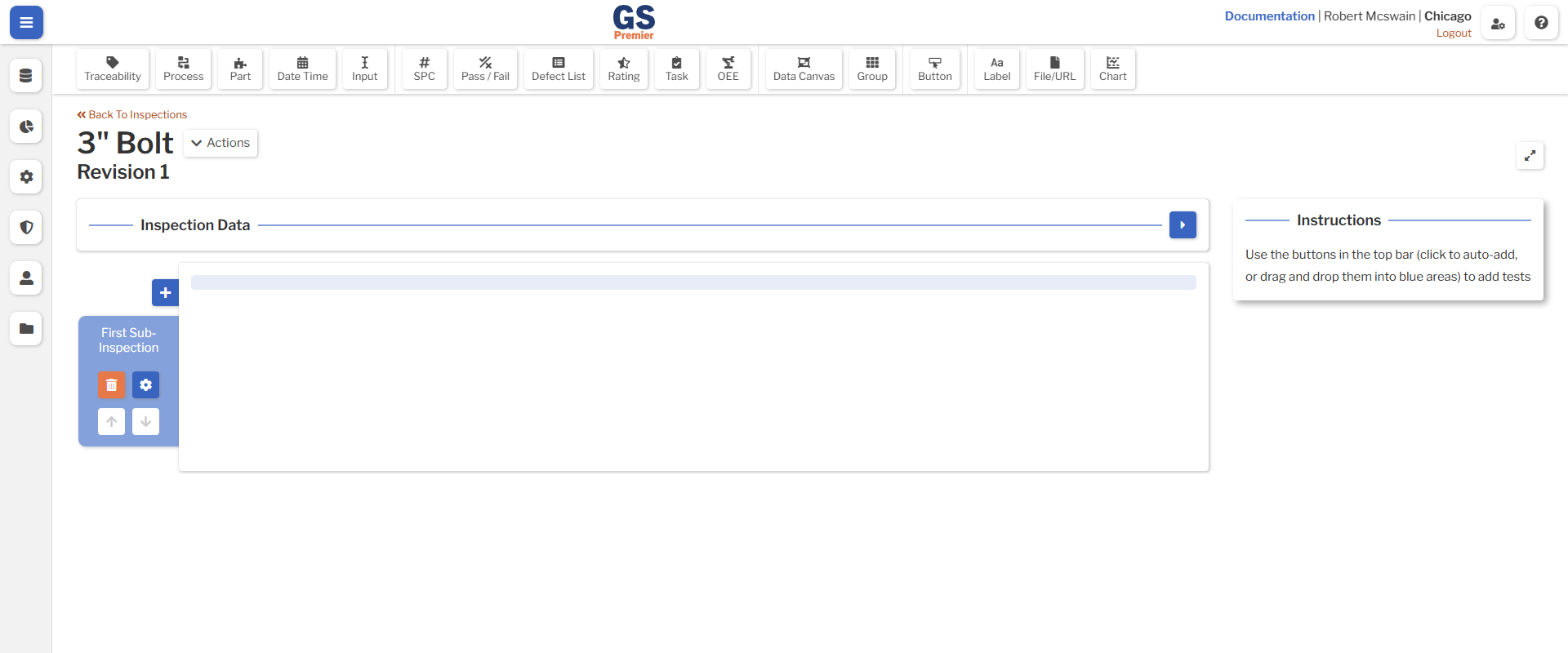

  3. You are now on the Inspection Designer where you can drag-and-drop Tests onto the Inspection. Inspection Designer

Add Tag Tests

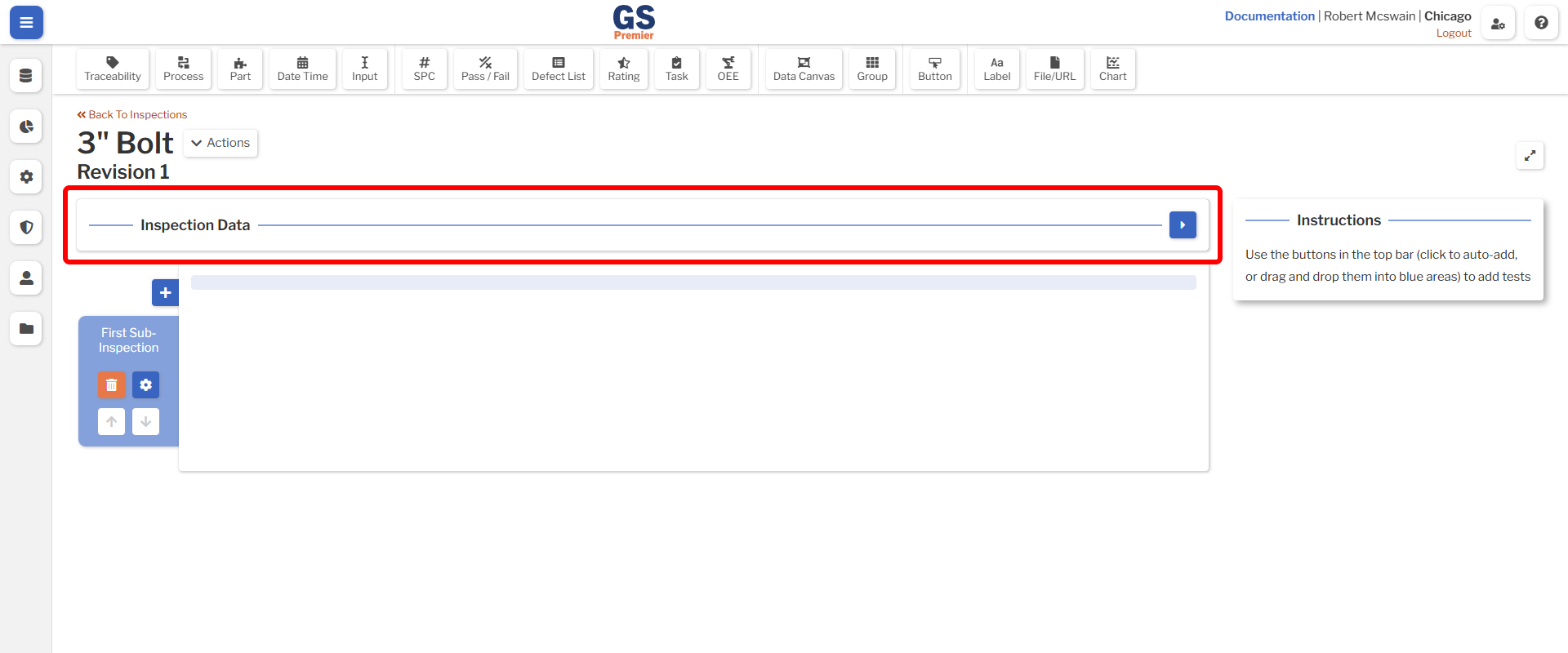

  1. Open the Inspection Data panel. The Inspection Data panel holds Tag Tests which are applied to all Data Tests in the Inspection. Inspection Designer with Inspection Data Panel

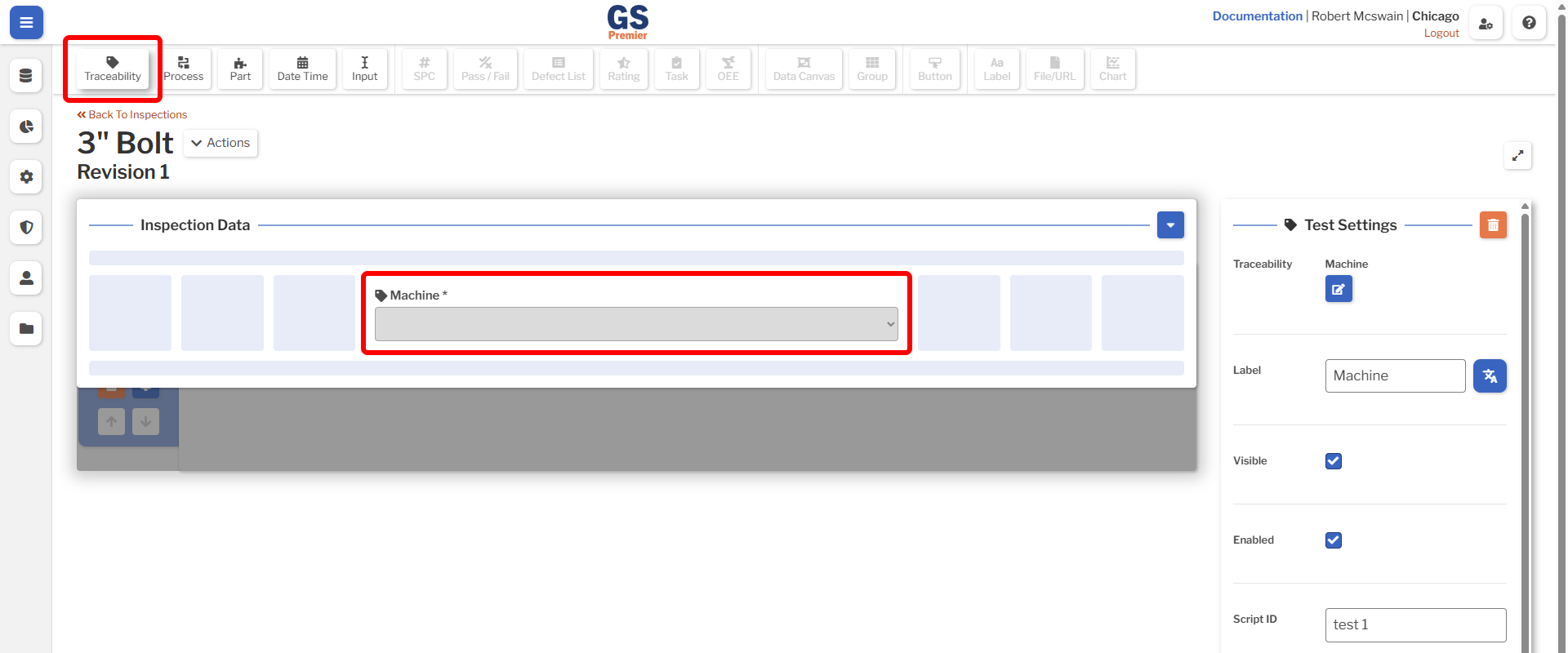

  2. Add a Traceability Test by dragging the Traceability button in the toolbar onto one of the blue areas in the designer. GS will automatically prompt you for the Traceability you want to collect in this Test. Inspection with Traceability Tests in the Inspection Data Panel
  3. Add another Traceability Test and select a different Traceability.
  4. Add a Process Test to the panel.

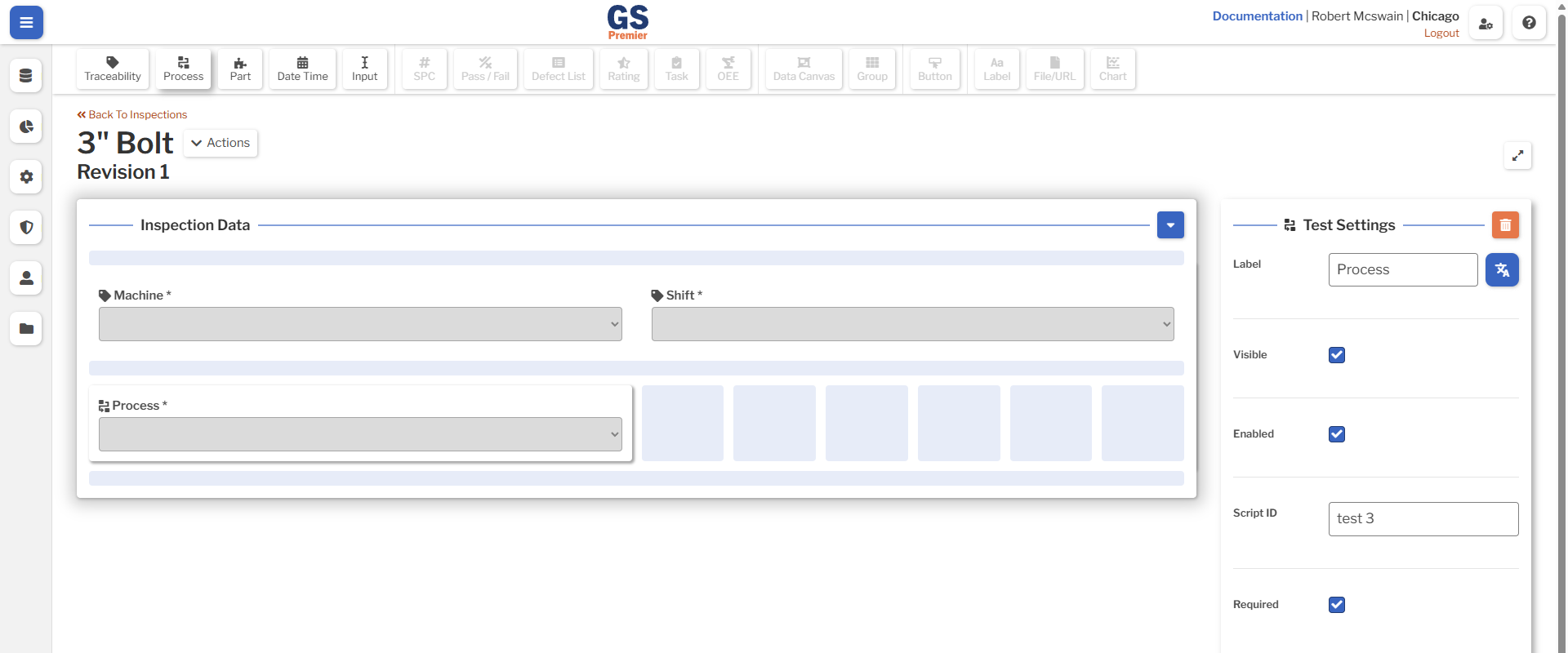

  5. Rearrange and resize the Tests to your liking by dragging them around in the designer. Inspection with resized Tests in Inspection Data Panel

Add Data Tests

  1. Collapse the Inspection Data panel and add an SPC Test by dragging the SPC button in the toolbar onto the designer.

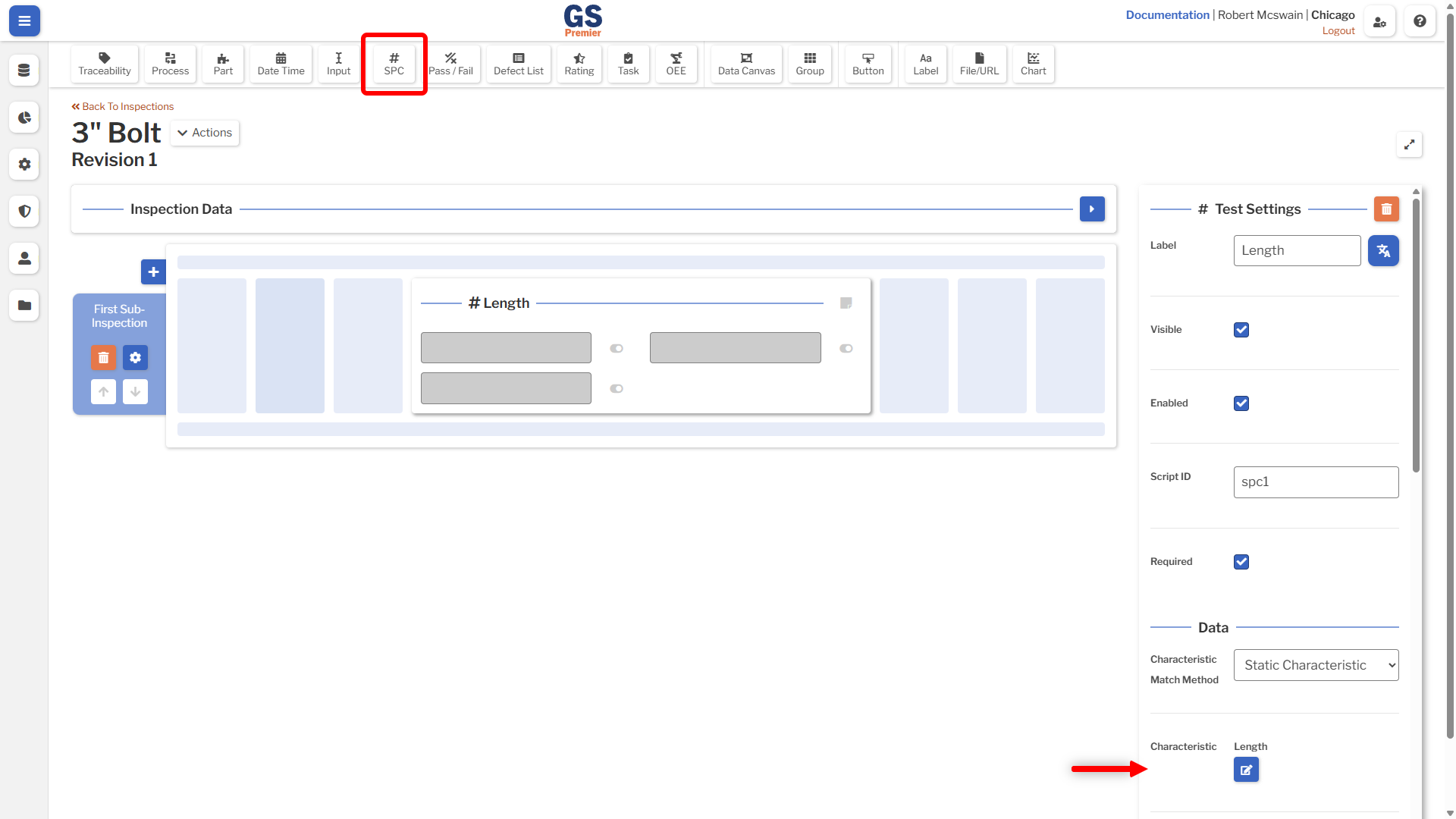

    1. After creating the SPC Test, select its Characteristic in the property window. Inspection with a single SPC Test showing the Characteristic button
  2. Add another SPC Test and select a different Characteristic.

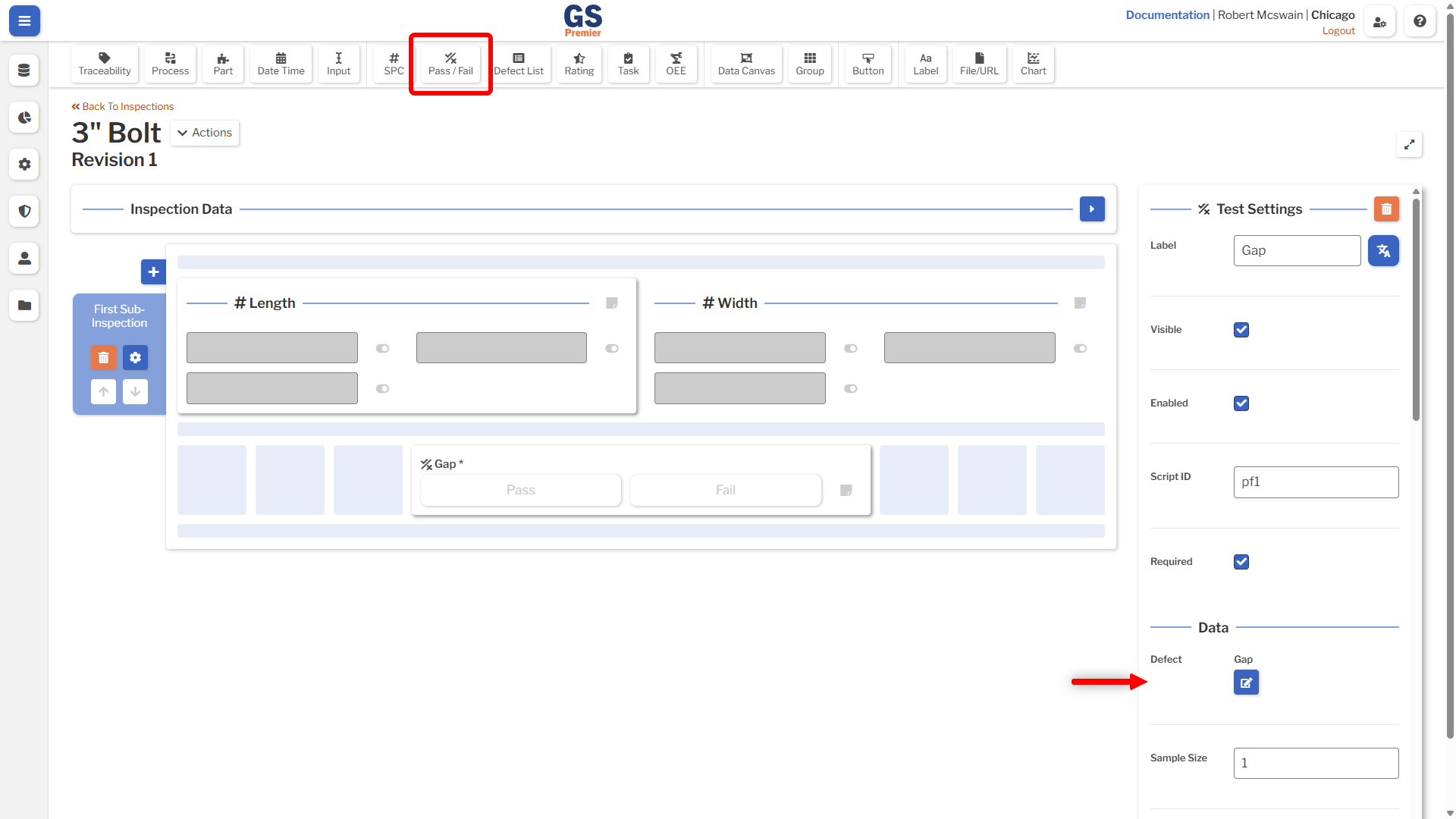

  3. Add a Pass/Fail Test and select its Defect. Rearrange the Tests to your liking. Inspection with a Pass/Fail Test showing the Defect button

Run the Inspection

  1. Select the Save and Run action to save the Inspection and start it in a new tab. This allows you to see exactly what the user will see when running the Inspection.

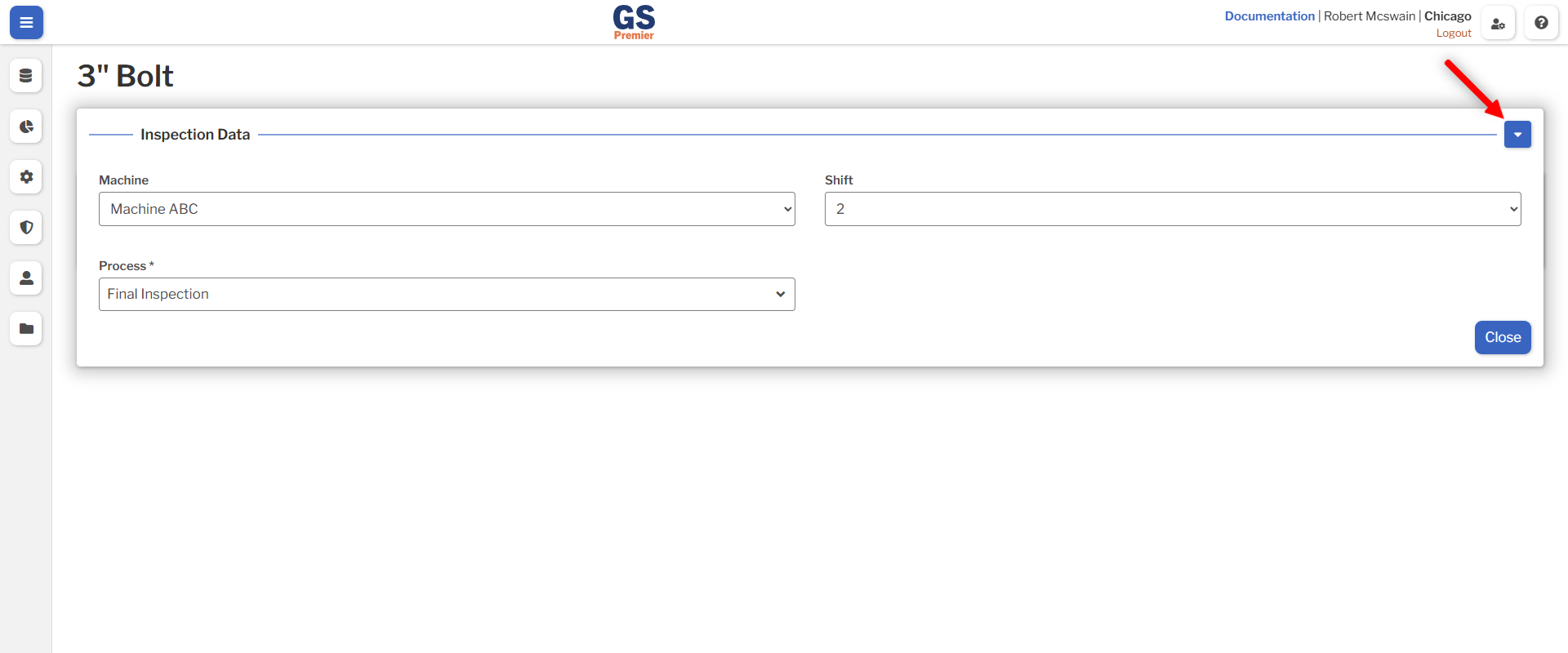

  2. Enter all required fields in the Inspection Data Panel. Then collapse the panel. Run Inspection with Panel Open

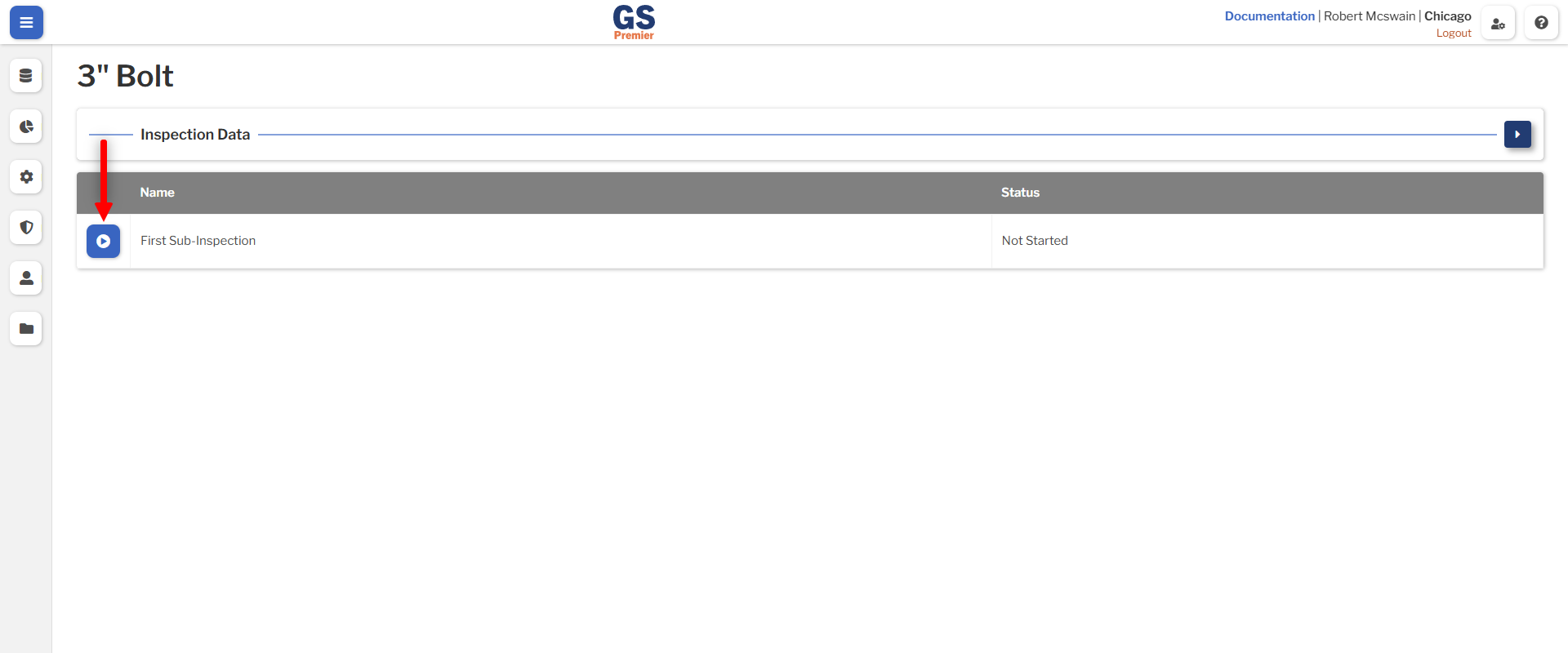

  3. Click the Run button to start the First Sub-Inspection. Sub-Inspection List
  4. Enter values into the SPC Tests and select either Pass or Fail.

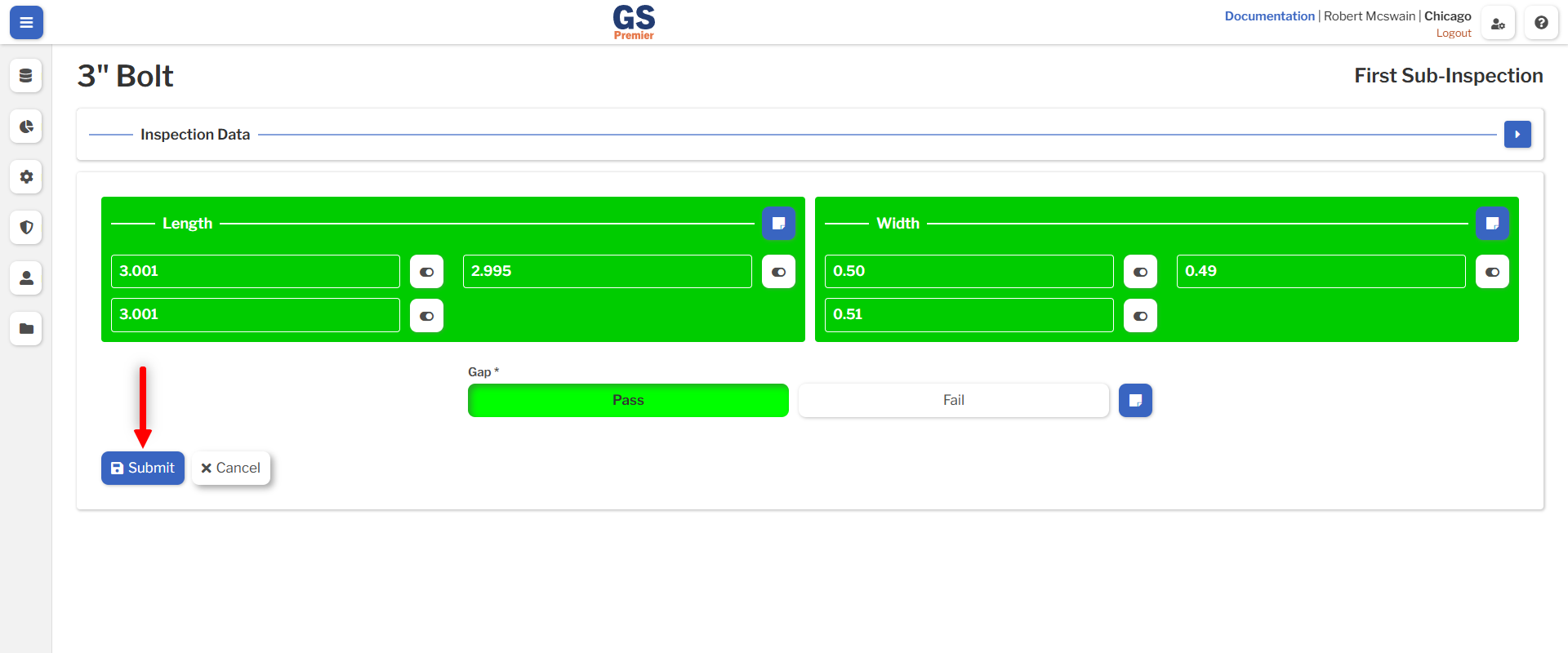

  5. Click Submit to store the data. Run Sub-Inspection with Tests Filled
  6. Repeat Steps 3-5 a few times.
    1. Note that you can revisit the Inspection Data panel at any time. Data will be stored with the current values of the panel whenever Submit is clicked.

Publish the Inspection

When you are happy with the layout of your Inspection and are ready for users with the List and Run Published Revision permission to use it, you can publish it for data entry users.

  1. Navigate to the Inspection list page under the Data Entry menu.

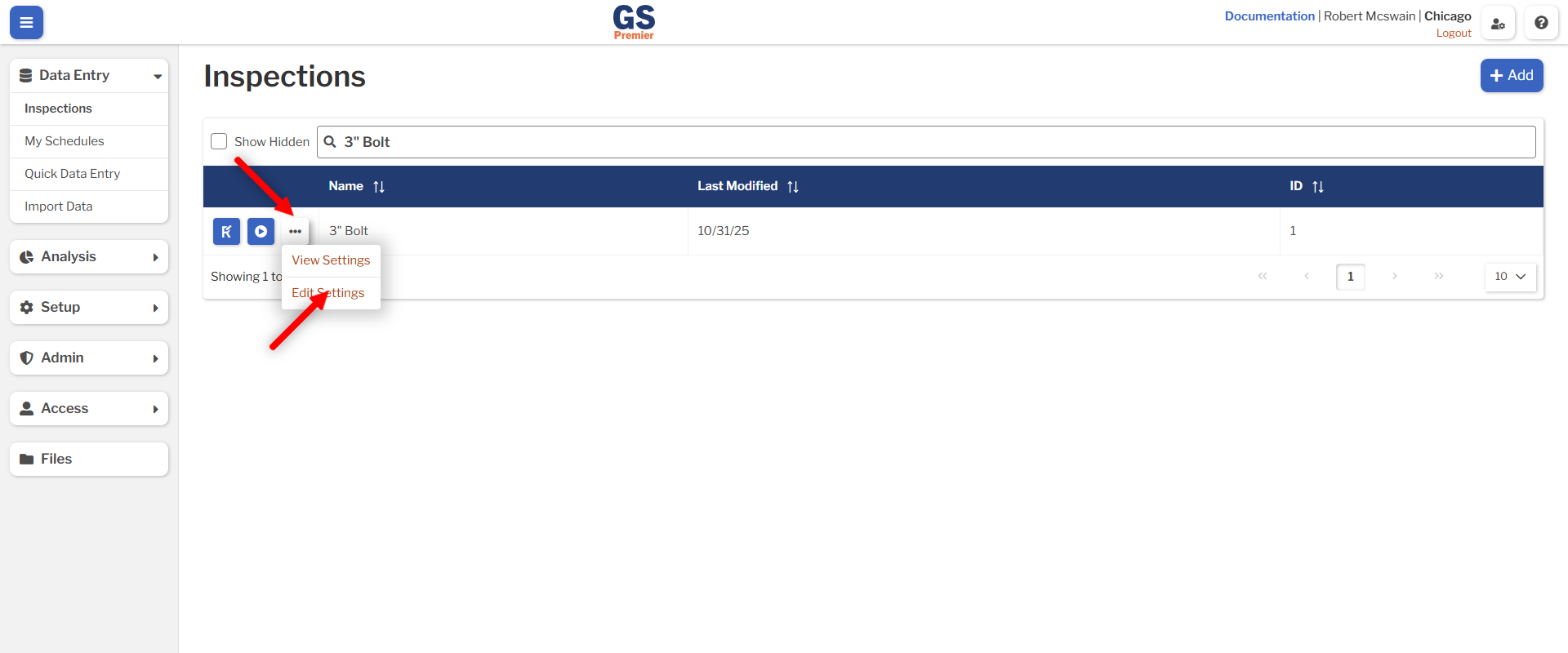

  2. Select the More Actions (...) button from the list of Inspections, then select Edit Settings. More Actions

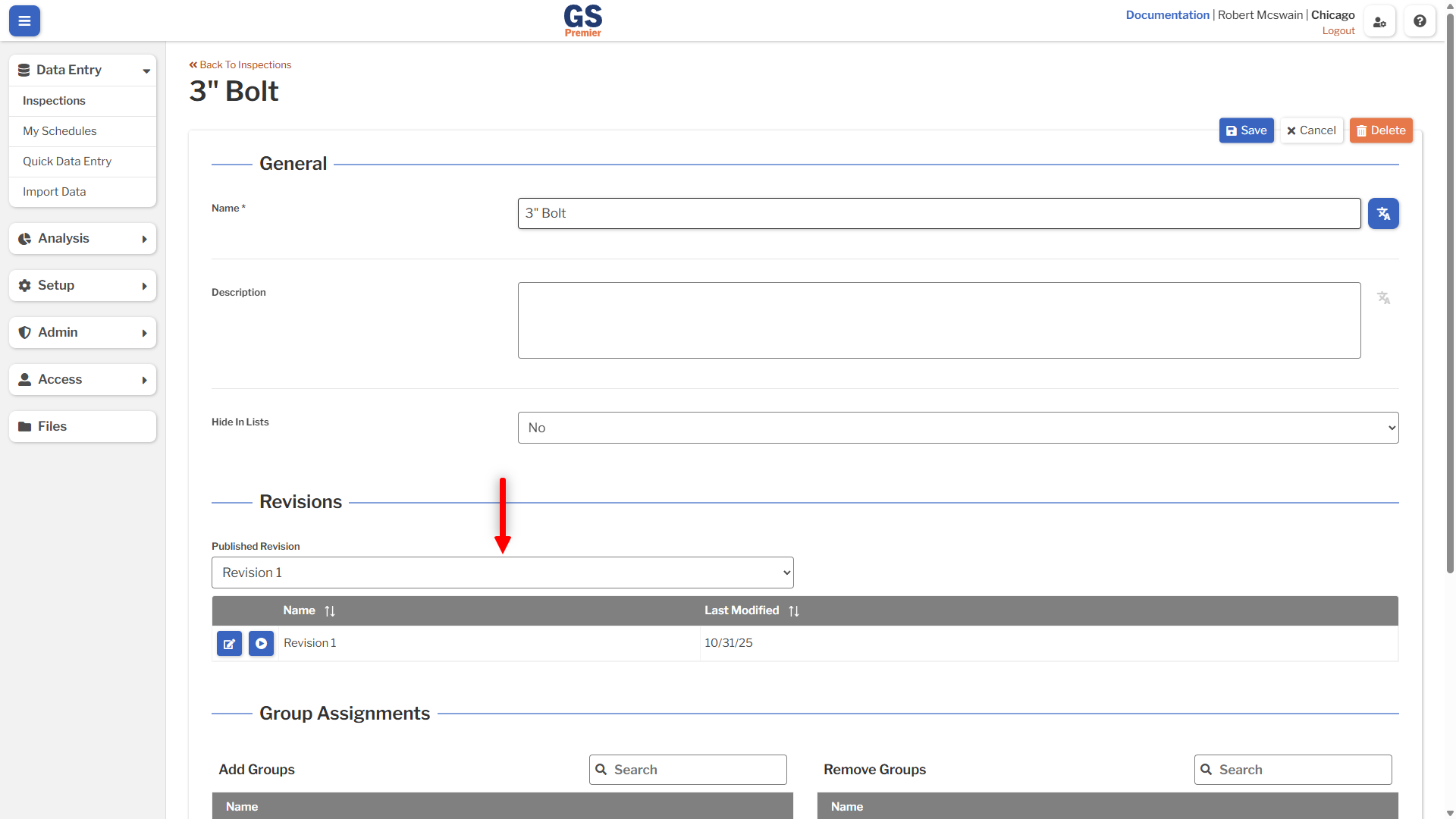

  3. Select the desired revision as the Published Revision, then click Save. Selecting a published revision
