Getting Started with Processes

In GS, Processes represent operations which Parts undergo during production. Each data record must be tagged with a Process, and Processes are used in all types of analysis.

Tip

GS includes a default Process named Final Inspection. Instead of creating a new Process, you may want to rename Final Inspection to fit your needs.

Best Practices

To get the most out of Processes in GS, follow these best practices.

  • Use the same Process for different data types. The same Processes can be used to collect SPC, DMS, OEE, and Task data. Each data type does not require a distinct Process, which allows analyzing different data types together.
  • Create one Process per distinct manufacturing operation. For example, if a part undergoes through machining, welding, painting, and finishing, it may be helpful to define a separate Process for each step.
  • Design Processes with analysis in mind. Processes enable combined analysis across data types, offering a more complete view of your manufacturing performance.
  • Avoid creating too many Processes. A smaller list prevents overwhelming operators and analysts with unnecessary choices.

Create a Process

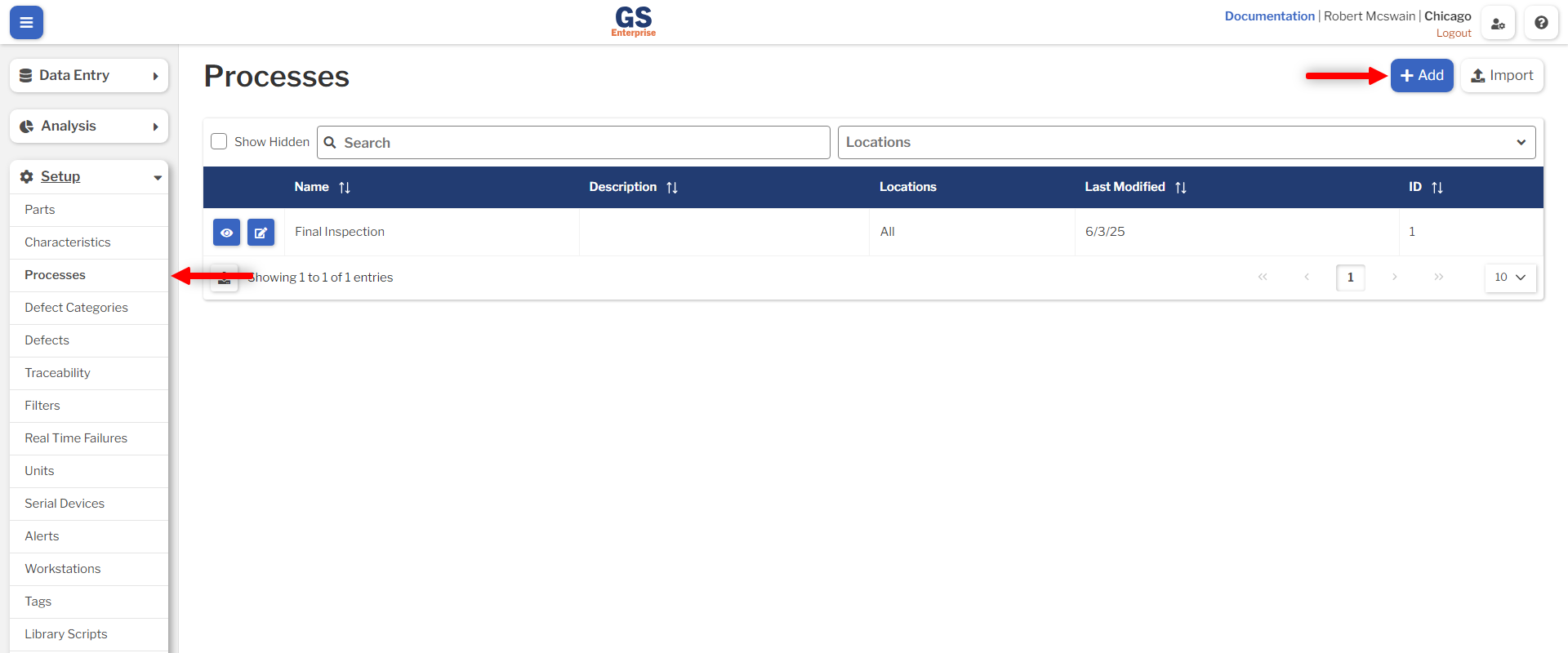

To create a Process, navigate to the Process list page under the Setup menu. Click Add.

Process List

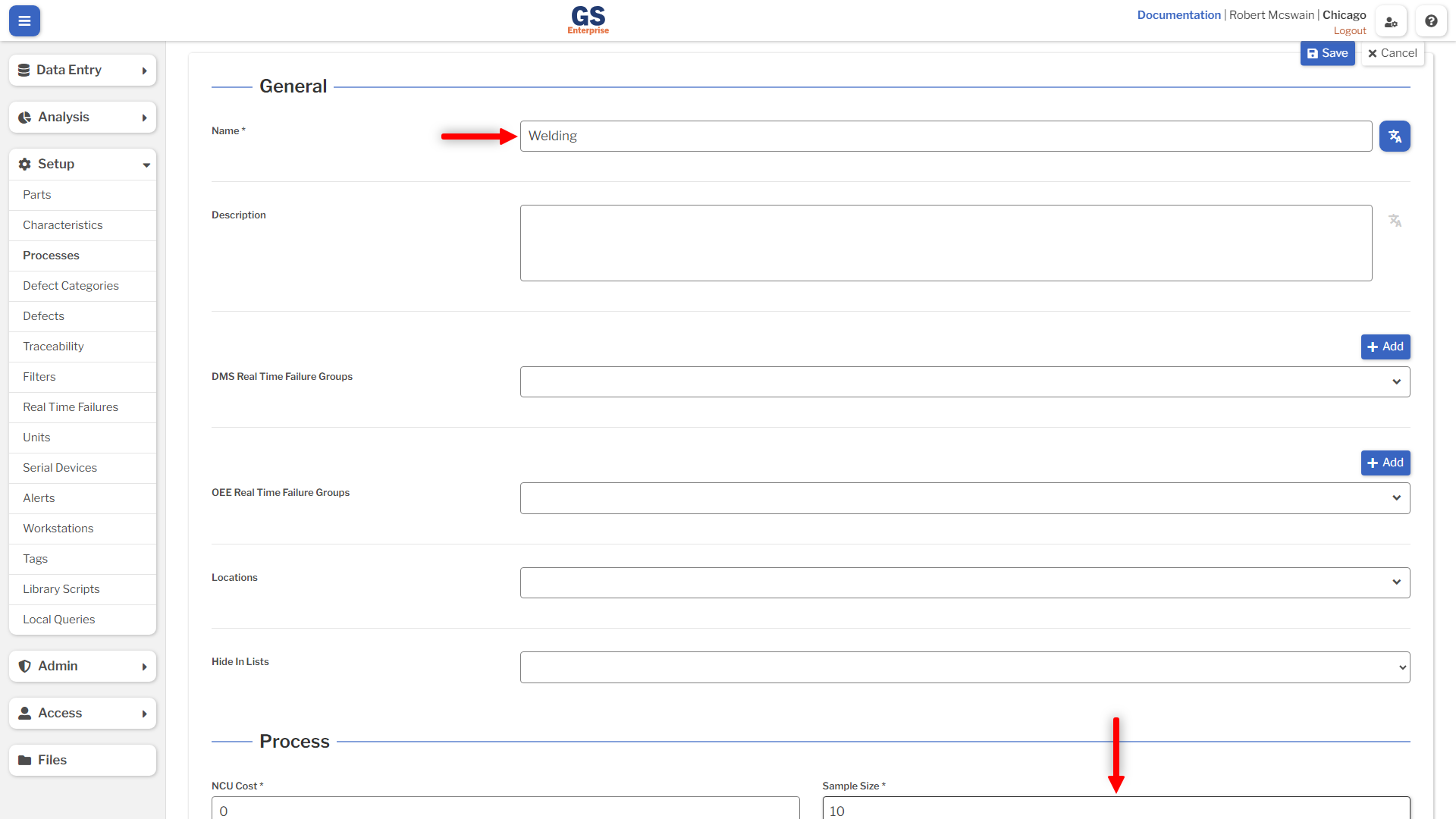

  1. Fill in the Name and default Sample Size of the Process.
  2. Click Save.

Process Create

See the reference page for a complete description of all settings.
