Getting Started with Traceability

Traceability is descriptive information that is stored alongside data. Collecting accurate Traceability is key to performing useful analysis.

Best Practices

To get the most out of Traceability in GS, follow these best practices.

  • Spend time thinking about how you want to split and group data during analysis. Traceability is the most critical piece of useable, actionable analysis. Collecting just enough information will give you insights with none of the noise.
  • Most Traceability should be Text. Do not choose a numeric type (Decimal, Integer, or Currency) for data that is categorical, even if the values only consist of numbers. For example, a serial number should be a Text Traceability; continuous values like temperature should be Decimal.
  • Use preset options. If there are a list of acceptable values for a Traceability, set them as Preset Values and turn on the setting to restrict input to only those values.

Create a Traceability

To create a Traceability, navigate to the Traceability list page under the Setup menu. Click Add.

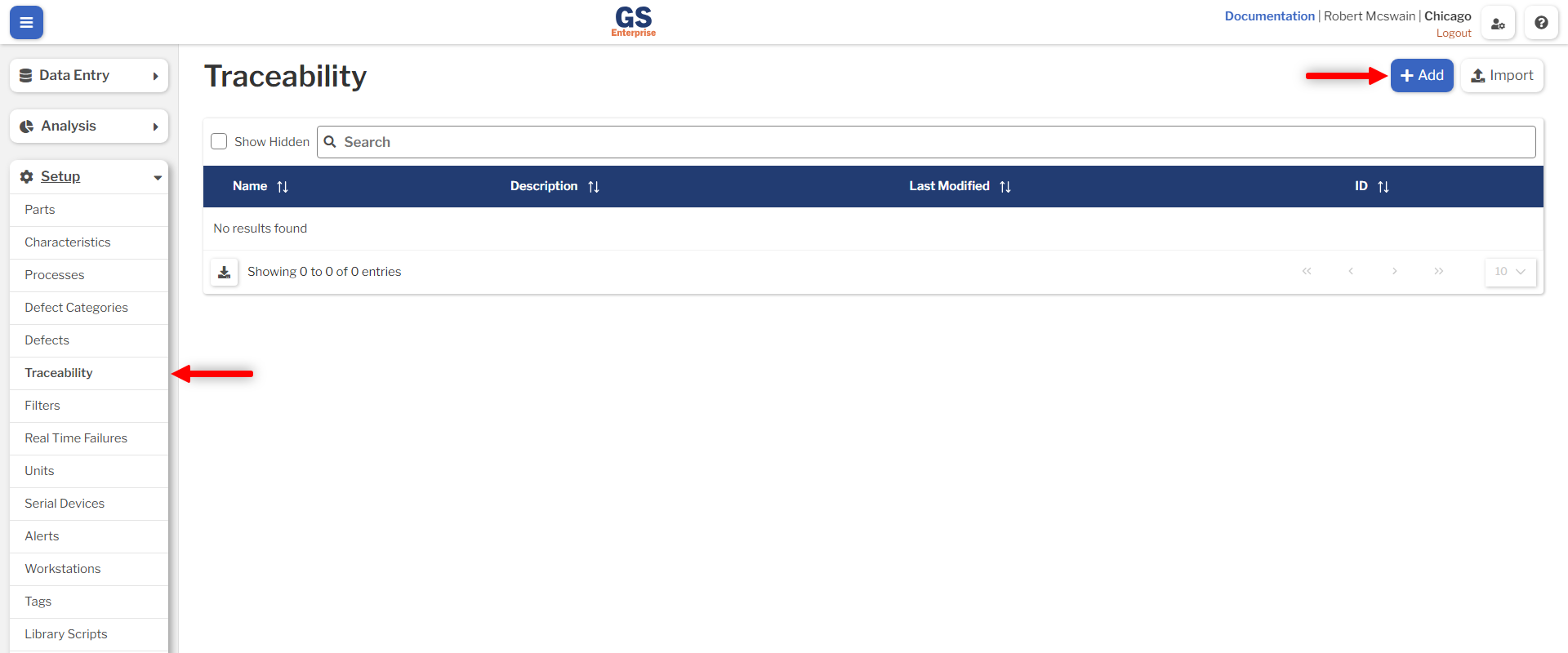

Traceability List

  1. Fill in the Name of the Traceability.
  2. Select which Type of information can be entered.
  3. (Optional) In the Restrictions list, enter the acceptable values that should appear during data entry.
  4. (Optional) In the Restrictions section, select Only allow these values during data entry.
  5. Click Save.

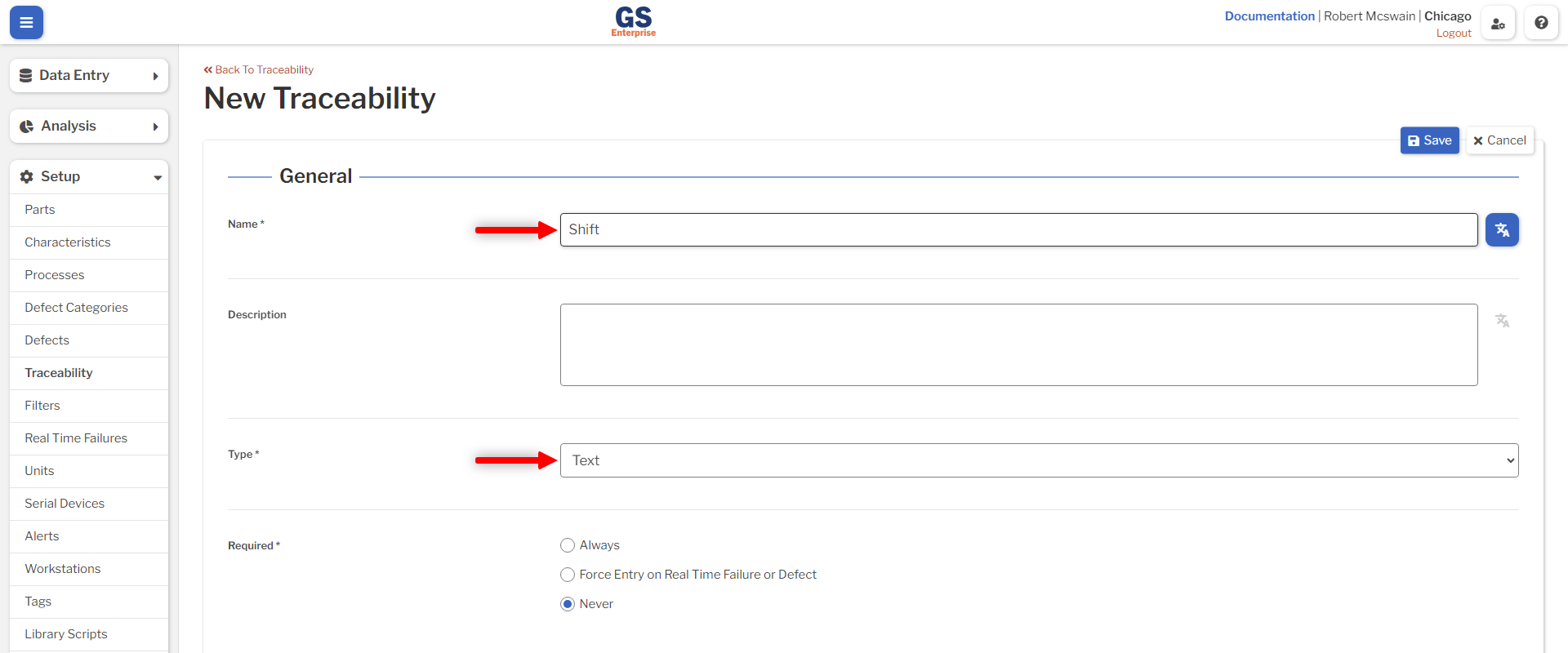

Traceability Create

See the reference page for a complete description of all settings.

Getting Started

  1. Create a Process
  2. Create Traceability
  3. Create Parts and Characteristics
  4. Create Defects and Defect Categories
  5. Create an Inspection
  6. Create a Dashboard
